E349F 349D2 349E 352F-TRAVEL CARRIER ASSY 1# 296-6248/096-8058/191-2690 -PART OF 513-0982 DRIVE GP-FINAL
  • Nombre
  • Nombre
  • Nombre

E349F 349D2 349E 352F-TRAVEL CARRIER ASSY 1# 296-6248/096-8058/191-2690 -PART OF 513-0982 DRIVE GP-FINAL

Nombre De La Marca: TGFQ
Número De Modelo: E349F 349D2 349E 352F
Cantidad Mínima De Pedido: 1 unidad
Precio: 104.00USD
Condiciones De Pago: T/T
Información detallada
Descripción del producto
Información detallada
Lugar de origen:
Cantón, China
Tipo de unidad:
Hidráulico
Características principales:
21 dientes
Material:
20CrMoTi
Peso neto:
25kg
Capacidad de la fuente:
100 piezas
Resaltar:

Excavator travel carrier assembly

,

Excavator drive gear part

,

Excavator final drive component

Descripción del producto
E349F 349D2 349E 352F Travel Carrier Assembly
Product Overview

High-quality excavator final drives for E349F 349D2 349E models, engineered to deliver superior performance and reliability. Constructed from durable steel materials and powered by hydraulic drive systems, these components provide maximum torque and efficiency across diverse operating conditions.

Key Specifications
Product Name Excavator Travel Shaft Drive
Part Numbers 333-2936
Compatible Models E349F 349D2 349E DRIVE GP
Drive Type Hydraulic
Material High-strength Steel
Weight Classification Heavy-duty
Availability In Stock
Product Features
  • Excavator Travel Gearbox without Motor
  • Excavator Travel Reduction System
  • Heavy-duty construction for demanding applications
  • Hydraulic drive system for maximum efficiency
  • High-strength steel material for durability
Applications

This specialized excavator final drive is a travel gearbox component designed for E349F 349D2 349E 352F models. This hydraulic drive system is engineered for heavy-duty applications and is widely utilized in various excavator travel assemblies and gearbox configurations.

Product Images

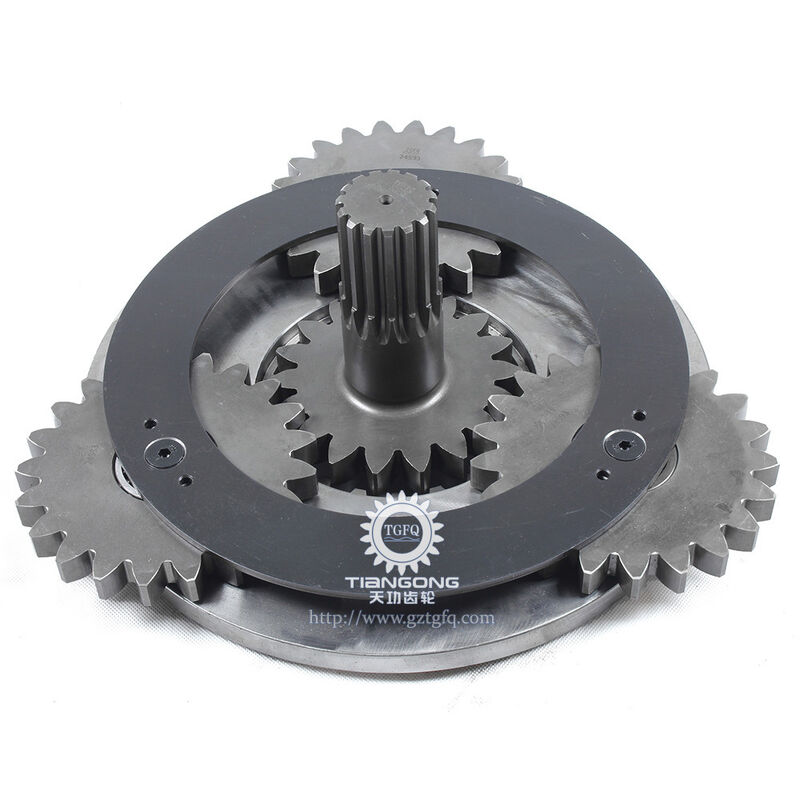

Excavator travel carrier assembly component view Excavator travel carrier assembly side view Excavator travel carrier assembly detailed view
Parts Breakdown
Excavator travel carrier assembly parts diagram
Item Part Number Part Name Quantity
17Y-0808Shim (1.6-MM Thk)1
27Y-1469Coupling1
37Y-1472Shim (0.15-MM Thk)1
47Y-1473Shim (0.3-MM Thk)1
57Y-1474Shim (0.4-MM Thk)1
67Y-1475Shim (0.5-MM Thk)1
77Y-1476Shim (0.6-MM Thk)1
87Y-1477Shim (0.7-MM Thk)1
97Y-1478Shim (0.8-MM Thk)1
107Y-1479Shim (1-MM Thk)1
117Y-1480Shim (1.6-MM Thk)1
127Y-1493Spacer (8.7X50X14-MM Thk)1
13114-1541Pin-Dowel6
14136-2898Washer (58.3X89X1-MM Thk)14
15191-2690Washer (42.3X70X1-MM Thk)6
16199-4719Gear-Coupling1
17227-6048Washer (26X40X4-MM Thk)12
18255-2272Seal GP-Duo-Cone1
205-9114Ring-Toric2
19296-6185Shaft4
20296-6195Shaft3
21333-2927Gear-Sun (18-TEETH)1
22333-2928Gear-Sun (21-TEETH)1
23333-2929Gear-Sun (21-TEETH)1
24333-2930Gear-Planetary (21-TEETH)3
25333-2931Gear-Planetary (20-TEETH)3
26333-2932Gear-Planetary (20-TEETH)4
27333-2936Carrier AS1
28333-2938Carrier-Planetary1
29333-2939Carrier-Planetary1
30333-2942Spacer (183X209.6X8.5-MM Thk)1
31333-2960Gear-Ring1
32333-3035Plate1
33346-5216Bearing-Needle11
34346-5556Cone-Bearing2
35353-0605Housing-Gear1
36451-2176Washer-Hard (22X35X3.5-MM Thk)28
37451-2182Washer-Hard (13.5X25.5X3-MM Thk)20
38452-3520Housing-Motor1
39480-7403Cover1
40096-3216Setscrew-Socket (M12X1.75X12-MM)2
41096-8058Ring-Retaining3
42143-0811Bolt (M12X1.75X35-MM)20
43238-6588Pin-Spring7
44296-6248Bearing AS-Roller3
452R-0525Cup-Bearing2
463E-2338Plug-Pipe2
474S-5924Seal-O-Ring1
485P-8245Washer-Hard (13.5X25.5X3-MM Thk)20
496V-8133Bolt (M24X3X80-MM)12
506V-8200Bolt-Socket Head (M12X1.75X35-MM)20
517M-8485Seal-O-Ring2
527Y-0667Ring-Retaining2
537Y-1492Spacer (67X101.1X10-MM Thk)2
547Y-5217Bolt-Socket Head (M20X2.5X70-MM)28
558C-5240Seal-O-Ring1
561U-8846Sealant-Gasket
Support & Services

Our excavator final drive comes with comprehensive technical support and service. Our professional team is available 24/7 to assist with installation, maintenance, parts identification, and troubleshooting. We provide accurate diagnostic information to help resolve issues quickly and efficiently, ensuring optimal performance of your equipment.
