E345C/E349D 349D2-TRAVEL SUN GEAR 2# 7Y-1491-PART OF 227-6044 DRIVE GP-FINA
  • Nombre
  • Nombre

E345C/E349D 349D2-TRAVEL SUN GEAR 2# 7Y-1491-PART OF 227-6044 DRIVE GP-FINA

Nombre De La Marca: TGFQ
Número De Modelo: E345C/E349D 349D2
Cantidad Mínima De Pedido: 1 unidad
Precio: 52.00USD
Condiciones De Pago: T/T
Información detallada
Descripción del producto
Información detallada
Lugar de origen:
Cantón, China
Tipo de unidad:
Hidráulico
Conteo de dientes:
21 dientes
Material:
20CrMoTi
Peso neto:
7 kgs
Capacidad de la fuente:
100 piezas
Resaltar:

Excavator drive gear with warranty

,

Excavator sun gear travel part

,

Excavator final drive gear

Descripción del producto
E345C/E349D 349D2-TRAVEL SUN GEAR 2# 7Y-1491-PART OF 227-6044 DRIVE GP-FINA
Product Overview

High-quality excavator final drives for E345C/E349D 349D2 models, engineered to deliver superior performance and reliability. Constructed from durable steel materials and powered by hydraulic drive systems, these components provide maximum torque and efficiency across diverse operating conditions.

Key Specifications
Product Name Excavator Travel Shaft Drive
Part Numbers 7Y-1491
Compatible Models E345C/E349D 349D2 DRIVE GP
Drive Type Hydraulic
Material High-strength Steel
Weight Classification Heavy-duty
Availability In Stock
Product Features
  • Excavator Travel Gearbox without Motor
  • Excavator Travel Reduction System
  • Heavy-duty construction for demanding applications
  • Hydraulic drive system for maximum efficiency
  • High-strength steel material for durability
Applications

This specialized excavator final drive is a travel gearbox component designed for E345C/E349D 349D2 352F models. This hydraulic drive system is engineered for heavy-duty applications and is widely utilized in various excavator travel assemblies and gearbox configurations.

Product Images

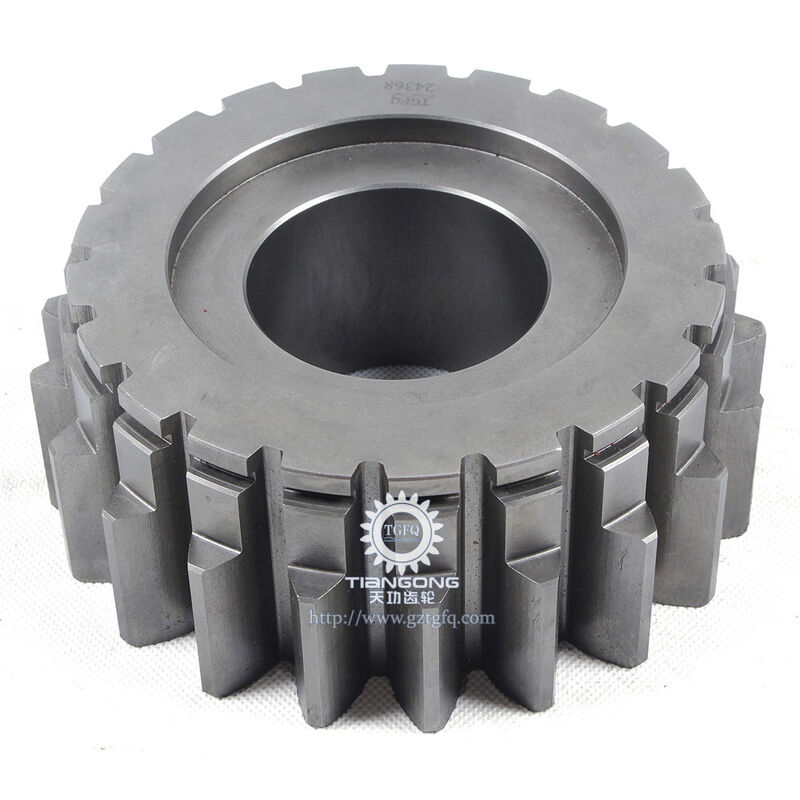

Excavator travel sun gear component view Excavator travel drive assembly detail
Parts Breakdown
Excavator travel gear parts diagram
Item Part Number Part Name Quantity
12R-0524Cone-Bearing2
22R-0525Cup-Bearing2
34I-7576Washer (66.3X104X3-MM Thk)14
47M-8485Seal-O-Ring2
57Y-0661Shaft-Planetary3
67Y-0662Shaft-Planetary4
7199-4583Bearing AS11
87Y-0808Shim (1.6-MM Thk)1
97Y-1469Coupling1
107Y-1470Gear-Sun (21-TEETH)1
117Y-1472Shim (0.15-MM Thk)1
127Y-1473Shim (0.3-MM Thk)1
137Y-1474Shim (0.4-MM Thk)1
147Y-1475Shim (0.5-MM Thk)1
157Y-1476Shim (0.6-MM Thk)1
167Y-1477Shim (0.7-MM Thk)1
177Y-1478Shim (0.8-MM Thk)1
187Y-1479Shim (1-MM Thk)1
197Y-1480Shim (1.6-MM Thk)1
207Y-1482Carrier-Planetary1
217Y-1483Gear-Ring (63-TEETH)1
227Y-1485Carrier-Planetary1
237Y-1487Gear-Ring (85-TEETH)1
247Y-1488Carrier AS1
257Y-1491Gear-Sun (21-TEETH)1
267Y-1493Spacer (8.7X50X14-MM Thk)1
277Y-1495Gear-Planetary (29-TEETH)3
287Y-1498Cover1
297Y-1499Gear-Planetary (20-TEETH)3
307Y-1504Gear-Planetary (20-TEETH)4
317Y-5235Bolt (M24X3X190-MM)20
32110-7217Ring-Retaining2
33114-1541Pin-Dowel6
34169-5559Gear-Sun (26-TEETH)1
35199-4719Gear-Coupling1
36200-3489Housing-Motor1
37200-3490Housing-Gear1
38205-9025Seal GP-Duo-Cone1
39227-6048Washer (26X40X4-MM Thk)12
40094-0584Washer (40.3X72X1-MM Thk)6
41199-4582Bearing AS3
42095-0891Pin-Spring7
43096-3216Setscrew-Socket (M12X1.75X12-MM)2
443E-2338Plug-Pipe (Final Drive, Oil Drain, Fill)2
456V-8133Bolt (M24X3X80-MM)12
467Y-1484Spacer (191X221X8.5-MM Thk)1
477Y-1492Spacer (67X101.1X10-MM Thk)2
488C-5240Seal-O-Ring1
498T-3957Bolt-Socket Head (M12X1.75X30-MM)10
508T-4167Washer-Hard (26X44X4-MM Thk)20
518T-4240Ring-Retaining3
521U-8846Sealant-Gasket
Support & Services

Our excavator final drive comes with comprehensive technical support and service. Our professional team is available 24/7 to assist with installation, maintenance, parts identification, and troubleshooting. We provide accurate diagnostic information to help resolve issues quickly and efficiently, ensuring optimal performance of your equipment.
